High quality semi-plan optics
Anti-fungal, multilayer coated optics
Economical Model
Optical system
Semi plan achromatic optics with Uniformly centered, interchangeable & parfocal , Tropicalized anti fungus treatment ensures image excellence for long periods in conditions favouring to fungus growth.
Objectives
Semi plan Achromatic SP objectives 4X, 10X, 40X, 100X
Eyepieces
HWF 10x (FN 18 mm) paired eyepiece with eyeguards . The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity. Compatible with optionally available eyepiece micrometer.
Diopter Correction
Dioptric adjustement available on the left eyepiece tube
Observation Head
Binocular head (45 degree inclined ), 360 degree rotatable, with diopter adjustment on the left . Interpupillary distance 53 -75mm
Trinocular head (45 degree inclined ), 360 degree rotatable, with diopter adjustment on the left. Interpupillary distance 53 -75mm.
Monocular Head (45 degree inclined ), 360 degree rotatable.
Power supply
(a) Built-in illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal power supply 100V-240V AC 50/60Hz single phase
(b) 3W LED light soure high brightness, longlife (30,000hrs)
(c) LED light soure (with battery back-up) high brightness, longlife (30,000hrs). Battery back-up in-built NiMH rechargeable batteries"

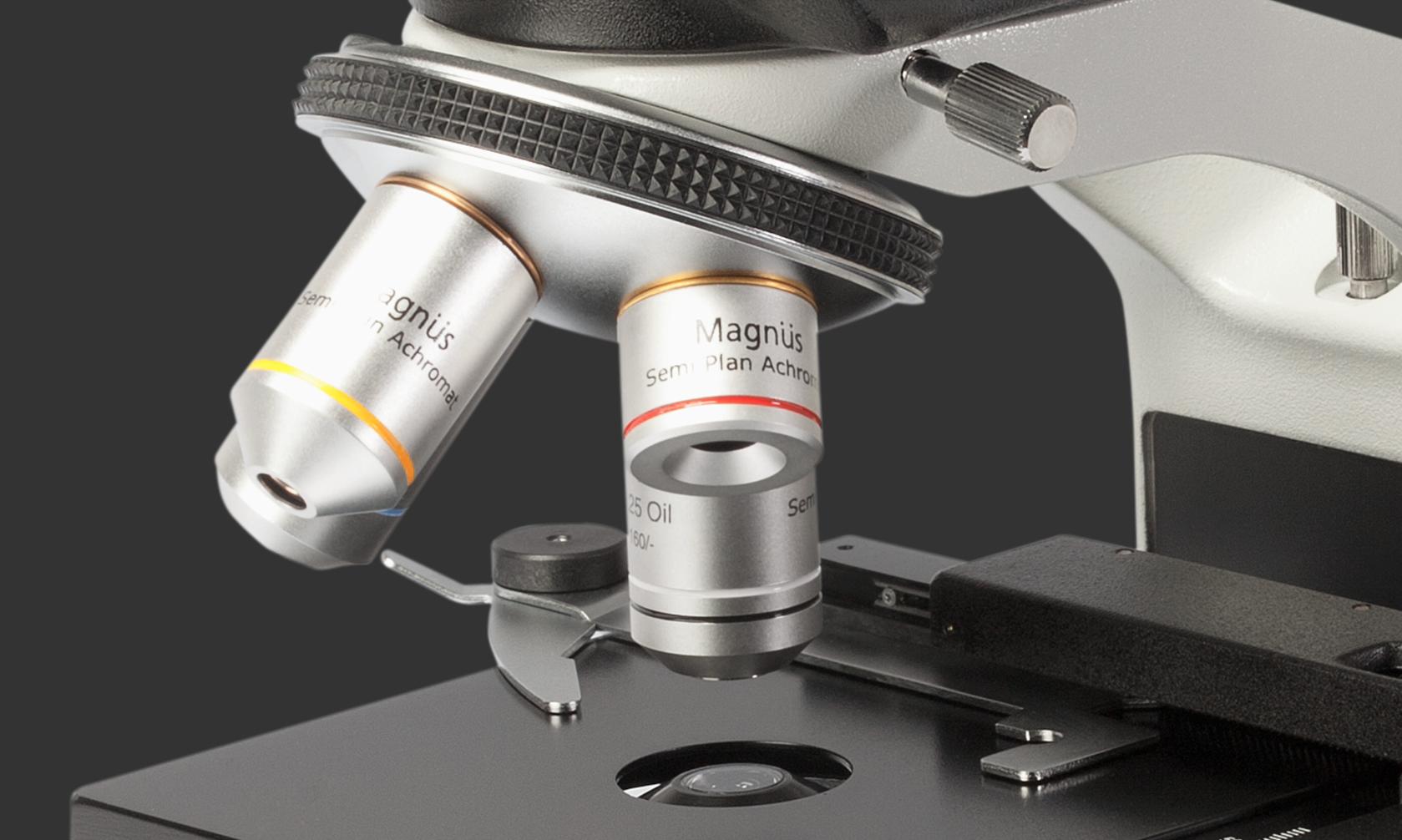

Nose Piece
Quadruple revolving outward nosepiece based on precision ball-bearing mechanism with positive click stop.
Body
Aluminium die- cast body with all critical movements based on ball bearing and wire guides thereby ensuring smooth and precise manipuation
Mechanical Stage
Co-axial low drive mechanical stage 125 mm x 145 mm with traverse area of 76 mm x 30 mm with single slide holder.
Focusing System
Co-axial coarse and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm. Fine focus rotation 0.2mm
Condenser Holder
Rack and pinion mounted condenser holder
Condenser
Pre-centered abbe condenser with aperture iris diaphragm (N.A. 1.25) focusable with rack & opinion and a continously variable iris diaphragm with a removable blue filter for day light observation
Accessories
(a) Phase Contrast attachment, Dark field attachment ,Polarizing attachment , Drawing Attachment.
(b) Plan objectives
(c) MagCam digital camera 3MP/5MP/10MP/HD camera
Magnification range
40x ~ 1000x for observation
LED life
30,000 hrs
| Models | Illumination | Observation tube | Objective |
|---|---|---|---|
| MLX-M plus Monocular (SP) | 6v 20w Halogen | 45° Monocular Head | Semi Plan |
| MLX-B plus Binocular (SP) | 6v 20w Halogen | 45° Binocular Head | Semi Plan |
| MLX-Tr plus Trinocular (SP) | 6v 20w Halogen | 45° Trinocular Head | Semi Plan |
| MLX-B plus LED Binocular (SP) | 3W LED | 45° Binocular Head | Semi Plan |
| MLX-Tr plus LED Trinocular (SP) | 3W LED | 45° Trinocular Head | Semi Plan |
| MLX-M plus Freedom Monocular (SP) | LED with battery back-up | 45° Monocular Head | Semi Plan |
| MLX-B plus Freedom Binocular (SP) | LED with battery back-up | 45° Binocular Head | Semi Plan |
| MLX-Tr plus Freedom Trinocular (SP) | LED with battery back-up | 45° Trinocular Head | Semi Plan |
| MLX-B plus Binocular (PA) | 6v 20w Halogen | 45° Binocular Head | Plan Achromat |
| MLX-Tr plus Trinocular (PA) | 6v 20w Halogen | 45° Trinocular Head | Plan Achromat |
| MLX-B plus LED Binocular (PA) | 3W LED | 45° Binocular Head | Plan Achromat |
| MLX-Tr plus LED Trinocular (PA) | 3W LED | 45° Trinocular Head | Plan Achromat |
| MLX-B plus Freedom Binocular (PA) | LED with battery back-up | 45° Binocular Head | Plan Achromat |
| MLX-Tr plus Freedom Trinocular (PA) | LED with battery back-up | 45° Trinocular Head | Plan Achromat |
