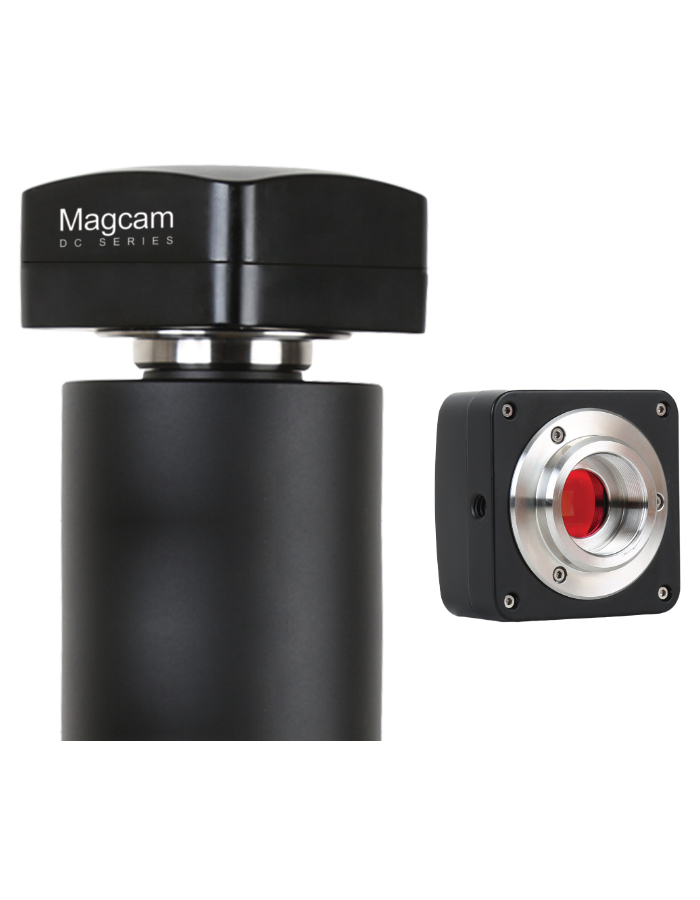

Digital Camera with CMOS sensors
With an Aluminum alloy housing and standard C Mount with USB 2.0 interface, this is ideal for routine educational, pathology & research applications.
Compatibility and Variants
This camera series is available in 2.3, 3,5,10 & 14 Megapixels options and is fully compatible with Windows / Linux / Mac.
Software
Operating System: Win XP/Vista/7/8/10 (32, 64 bit)
Software: MagVision
Image Format: JPEG/TIFF/BMP/PNG
Computer
CPU: Core - 2, 2.8 GHz or Higher
Core - 2, i3, i5, i7-> 2GB RAM
Other Requirments : C Mount / Eye piece Mount/Computer / Laptop / Software Magvision
Electronic Interface
PC/Laptop : USB-3.0 for Win & Mac
USB-2 for Win & Mac
Power Supply : 5V DC Via PC USB PORT
5V DC Via USB-2
Operating Temp : 10 Degree C to +50 Degree C
| Camera Model | Camera Casing | Camera Dimension | Image Sensor | Sensor Size | Pixel Size | Resolution (Maximum) | Frame Rate | Dynamic Range | Signal/ Noise Ratio | Bining | Exposure Time | Spectra Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MagCam MU 2.3 MP Camera | Metal Alloy | 68 X 68 X 46 mm | CMOS 2.3 megapixel | 1/1.9" | 3.75 x 3.75 microns | 1920 x 1200 pixels | 38 @ 1920 x 1200 66 @ 960 x 600 |
-- | -- | 1X1, 2x2 | 0.244 ms to 2000ms | 380-650 nm with IR Filter |
| Magcam DC-3 | Metal Alloy | 60 X 60 X 40 mm | CMOS 3.1 megapixel | 1/2" | 3.2 x 3.2 microns | 2048 x 1536 pixels | 8@ 2048 x 1536 22 @ 1024 x 768 43@ 680x510 |
61db | 43 db | 2x2, 3x3 | 0.24 ms to 2000ms | 380-650 nm with IR Filter |
| Magcam DC-5 | Metal Alloy | 60 X 60 X 40 mm | CMOS 5.1 megapixel | 1/2.5" | 2.2 x 2.2 microns | 2592 x 1944 pixels | 5@2592 x 1944 18@1280 x 960 60@ 640 x 480 |
66.5db | 40.5 db | 2x 2, 4x4 | 0.29 ms to 2000 ms | 380-650 nm with IR Filter |
| Magcam DC-10 | Metal Alloy | 60 X 60 X 40 mm | CMOS 10 megapixel | 1/2.3" | 1.67 x 1.67 microns | 3584 x 2748 pixels | 1.9@3584 x 2748 8@1792 x 1374 27@896 x 684 |
65.2 db | 34.0 db | 2x 2, 4x4 | 0.4 ms to 2000 ms | 380-650 nm with IR Filter |
| Magcam DC-14 | Metal Alloy | 60 X 60 X 40 mm | CMOS 14 megapixel | 1/2.3" | 1.4 x 1.4 microns | 4096 x 3288 pixels | 1.8 @ 4096 x 3288 10 @2048 x 1644 27 @1024 x 822 |
65.3 db | 35.5 db | 2x 2, 4x4 | 0.4 ms to 2000 ms | 380-650 nm with IR Filter |
